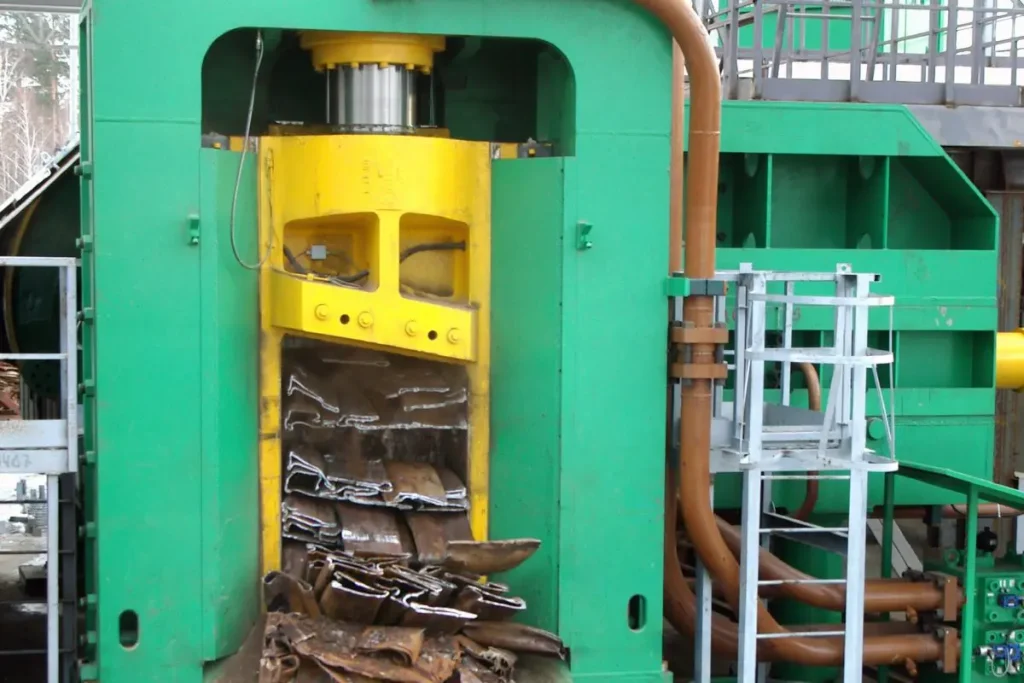

CNS 1100-CV2
In addition to the compact container shears, we also offer stationary guillotine shears with side compressors based on ZDAS’ more than 50 years of experience in scrap metal processing. The scissors are available in different sizes with different shear forces from 600 to 1,100 t. They are characterized, among other things, by an inclined mobile side compressor (flipper function) to make it easier to compact symmetrical constructions, such as containers or chassis.
Advantages
Modern shear press for heavy construction scrap
Patented flipper function of the side compactor for breaking bulky construction scrap
High-quality and fast hydraulic system with power-regulated Bosch-Rexroth hydraulic pumps
Low charging height due to low design
Control and process monitoring with Siemens S-7 control and user-friendly interfaces
Know-how based on more than 50 years of experience from ZDAS as a manufacturer of scrap processing plants
Technical Data
| Unit | CNS 800-CV2 | CNS 1100-CV2 | CNS 1600-CV2 | |
|---|---|---|---|---|
| Cutting Force | kN | 8,000 | 11,000 | 16,000 |
| Hold-Down Force | kN | 3,000 | 3,000 | 4,000 |
| Cutting Width | mm | 900 | 900 | 900 |
| Press Box Length | mm | 6,000 | 8,000 | 9,000 |
| Press Box Height | mm | 2,000 | 2,000 | 2,000 |
| Package Dimensions | mm | 700 x 900 | 700 x 900 | 900 x 900 |
| Drive Power of Pumps | kW | 4 x 75 | 6 x 75 | 6 x 75 |
| Blade Strokes | 1/min. | 4 - 7 | 4.2 - 6.9 | 3.2 - 5.6 |
| Cutting Capacity | t/h | 24 - 34 | 31 - 44 | 23 - 35 |
